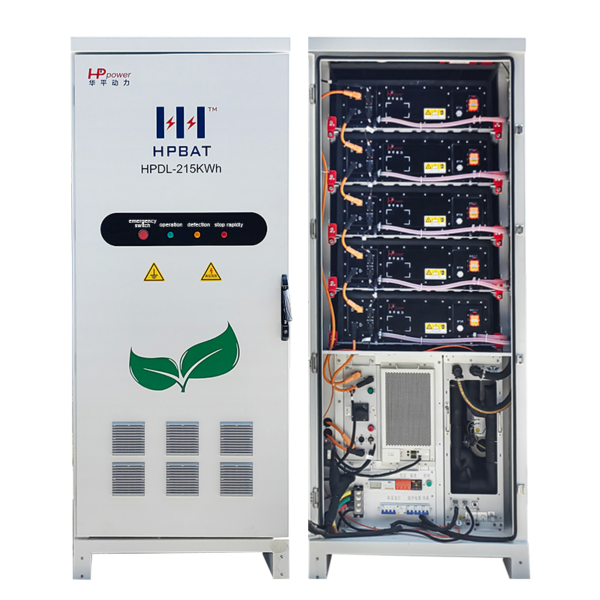

Huaping 215Kwh High Voltage Solar LFP
Battery Industrial & Commercial Energy
Storage System Container Liquid Cooling
Inquiry
Overview
DC side parameters
Electric core type
LFP 280Ah
Series-parallel connection of electric core
1P240S
Rated voltage
768V
DC voltage range
DC600-876V
Rated energy
215KWh
AC side parameters
Rated power
100KW
Rated grid voltage
AC400V(-10%-+10%)
Rated frequency
50Hz/60Hz
Total current waveform distortion rate
THD<3%
Connection mode
Three-phase four-wire
System Parameters
Size (D*W*H)
1380*1480*1990mm
Weight
2700KG
Cooling mode
Intelligent liquid cooling
Fire-fighting method
PACK level aerosol
Battery cycle life
>8000 times
Continuous charging and discharging rate
0.5C
Depth of discharge
≥90%DOD
Maximum Conversion Efficiency
≥95%
Protection grade
IP54
