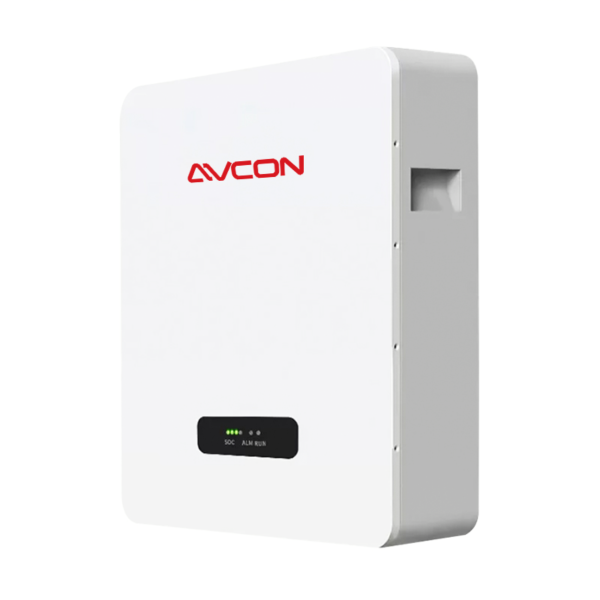

Wholesale Complete 100Kw 10kWh On-Grid
Solar Home System LFP Battery BMS Protection
100ah Wall-Mounted AC Home Use
Inquiry
Overview
Single module capacity
5.12kWh/10.24kWh /15.36kWh /15.36kWh
Rated voltage
51.2V(48V)
Operating voltage
44V-58.4V
Nominal discharge current
100A 200A 300A 400A
Nominal charging current
50A 100A 150A 200A
Cycle life
6000 cycles
Humidity
20%-60%
Installation method
Wall-mounted
Protection level
IP20
Communication protocol
CAN/RS485/RS232 (WIFI optional)
Dimension
600/450/250 mm
Gross/Net weight(battery part)
80kg
Battery type
LFP
Rated Battery Input Voltage
48Vdc
Hybrid Maximum Charging Current
80A
Battery pack voltage range
40Vdc-60Vdc
