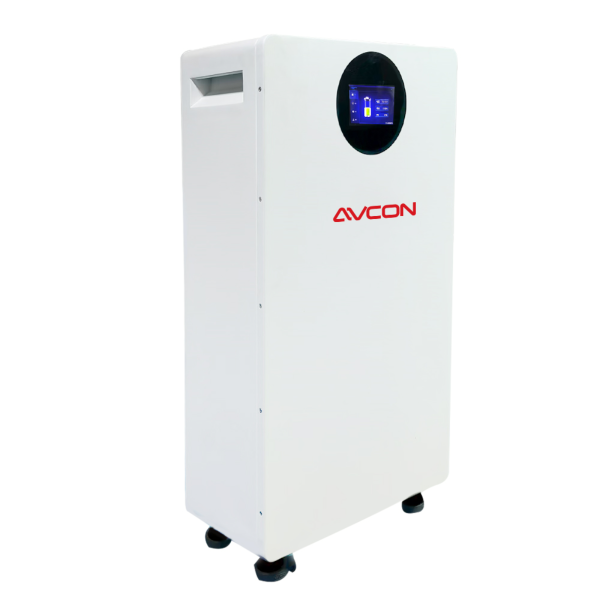

Touchscreen 48v 51.2V 100ah 200ah 5kWh
10Kwh 20kWh for Powerwall Home Solar
Storage Lifepo4 Battery Pack Lithium Ion
Batteries
Inquiry
Overview

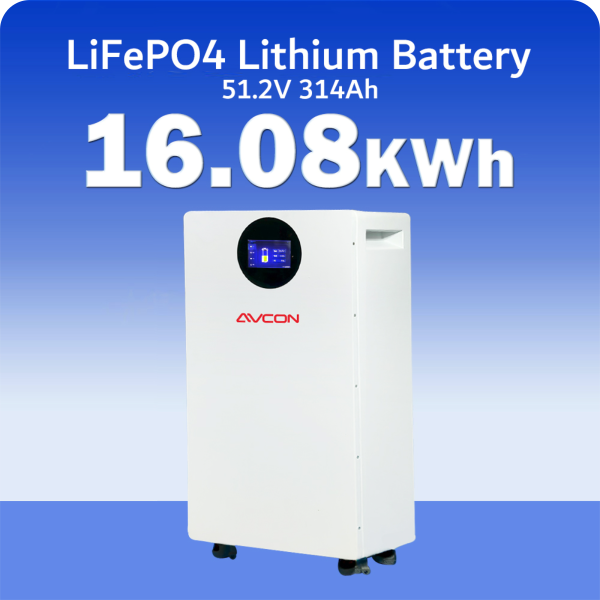

Single module capacity
5.12kWh/16.08kWh
Rated voltage
51.2V
Operating voltage
40V-58.4V
Nominal discharge current
100A 200A
Nominal charging current
100A 200A
Cycle life
6000 cycles
Installation method
Wall-mounted/Rack-mounted
Protection level
IP30
Communication protocol
CAN/RS485/ ( Bluetooth WIFI)

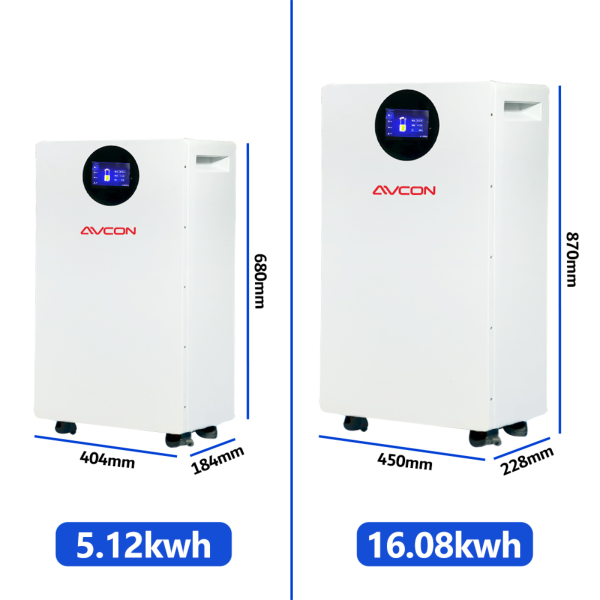

Dimension
(404*184*680) +2mm
Gross/Net weight(battery part)
53+3Kg
Battery type
LiFePO4
Cooling method
Spontaneous combustion air cooling
Charging Temp. Range
0~ 55°C
Discharging Temp. Range
-20~ 55°C
