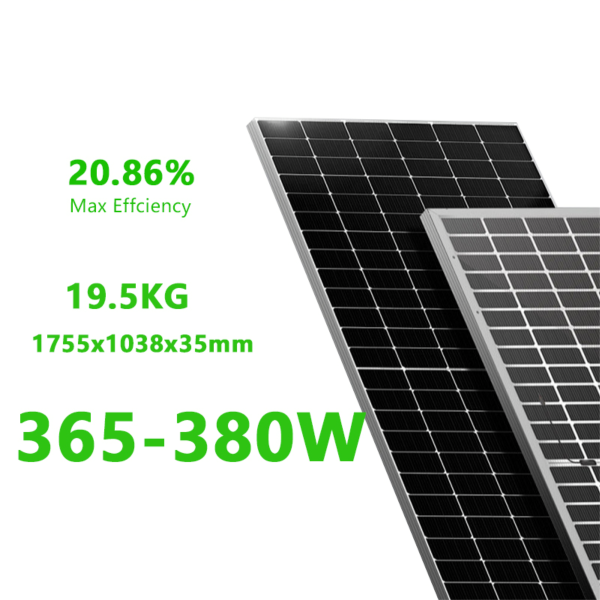

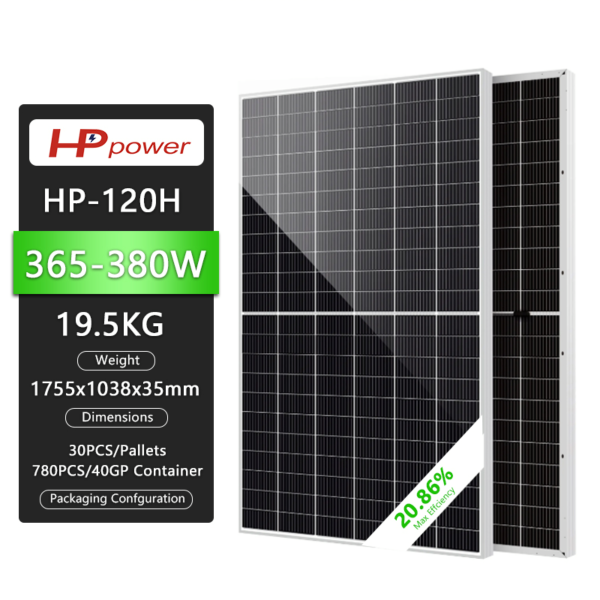

Huaping Solar Energy 380W Roof Solar
Panel Monocrystalline Home Solar
Energy System
Inquiry
Overview
Wattage
380w
Cell type
monocrystalline silicon
Grid size
166*166mm
Grid arrangement
120 (6*20)
Weight
19.5kg(+3%)
Dimension
1755*1038*35(mm)
Cable
4.0mm positive:300mm negative:300mm, cable length can be customized
Glass
3.2 mm high transmittance, coated tempered glass
Frame
anodized aluminum alloy
Junction box
Protection class IP68
connector
MC4 compatible connector
Mechanical Load
5400 Pa front / 2400 Pa rear
