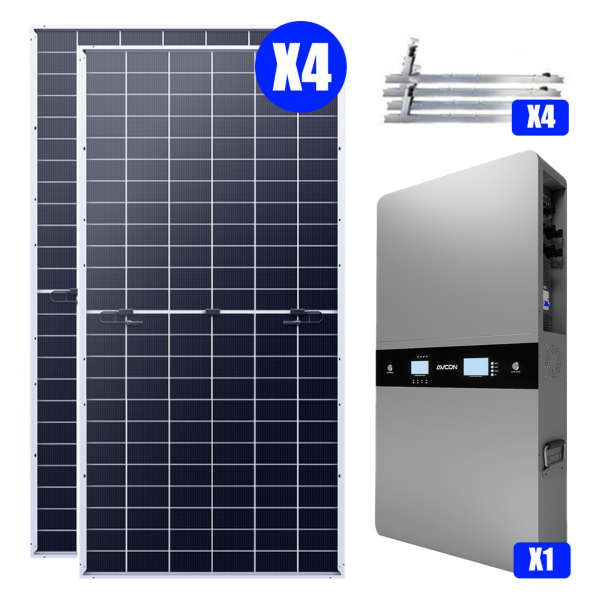

Avcon Off Grid Solar System Solar Panels With
Battery and Inverter Balcony Solar Kit Solar
Panel for Balcony Solar Storage
Inquiry
Overview
Solar Panel Parameters:
Solar Panels
610W *4
Maximum conversion efficiency
25.4%
Power Tolerance
3%
Dimension
2278*1134*35(mm)
Open Circuit Voltage (V)
48~53.33V
Maximum Power Point Voltage
39.87~44.6V
Short-Circuit Current (A)
14.97A
Weight
32KG
Protection Grade
IP68
Battery Cell Arrangement
2*72
Operating Temperature
-40°C~+85°C
Maximum Fuse Rated Current
30A

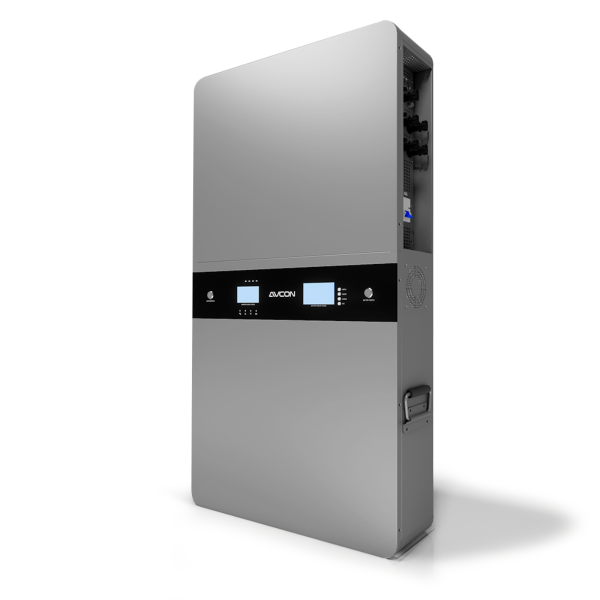

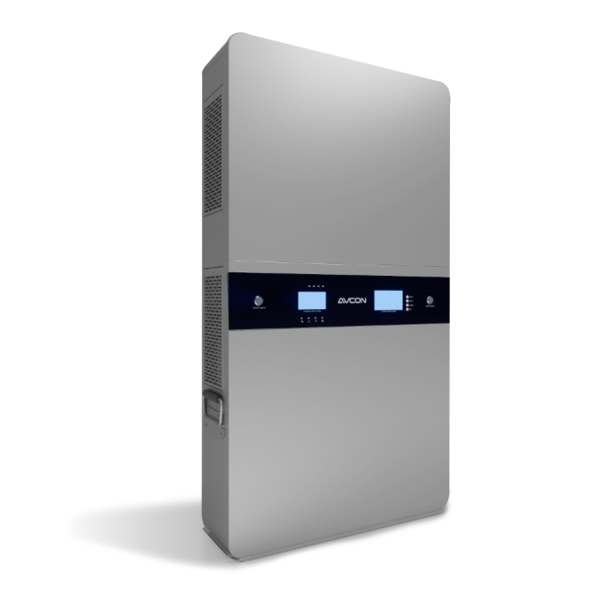

All-in-one Parameters:
Capacity
5 kWh/5KW All-in-one
Maximum PV Voltage(V)
500V
PV Maximum Input Power(KW)
6KW
MPPT Voltage Range
120Vdc~430Vdc
Output Power
5.5KW
Battery Voltage Range
44.8~60V
Capacity
5.12KWH
Bracket Parameters
Bracket*4,Stainless steel, stand column 1140mm + flat column 545mm
