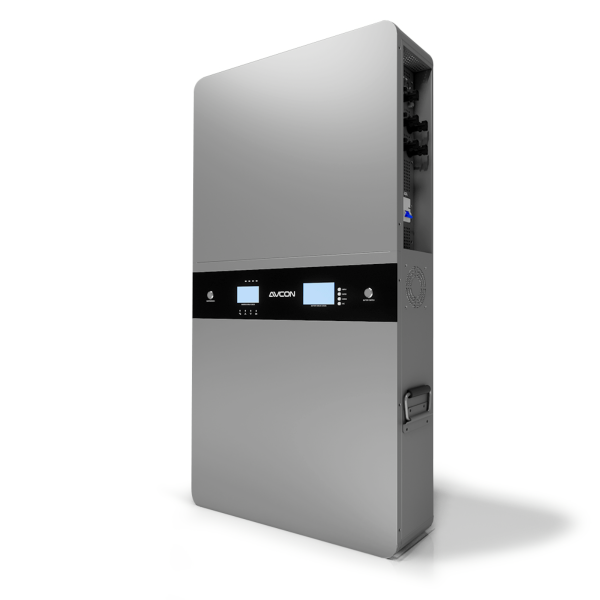

All-in-One Hybrid Solar System with Battery
Inverter AC Output Off-Grid Home Energy
Storage Solar Charge String Inverter
Inquiry
Overview
Capacity
5 kWh/5KW All-in-one
Maximum PV Voltage(V)
500V
PV Maximum Input Power(KW)
6KW
MPPT Voltage Range
120Vdc~430Vdc
Output Power
5.5KW
Battery Voltage Range
44.8~60V
Capacity
5.12KWH
Inverter type
Off-grid Power Inverter
Product Dimensions
915mm*515mm*135mm
Weight
60kg
Communication Interface
CAN/RS485/RS232
Rated Input Voltage
208/ 220/ 230/ 240VAC (50/ 60Hz)
Input Voltage Range
90VAC-280VAC
