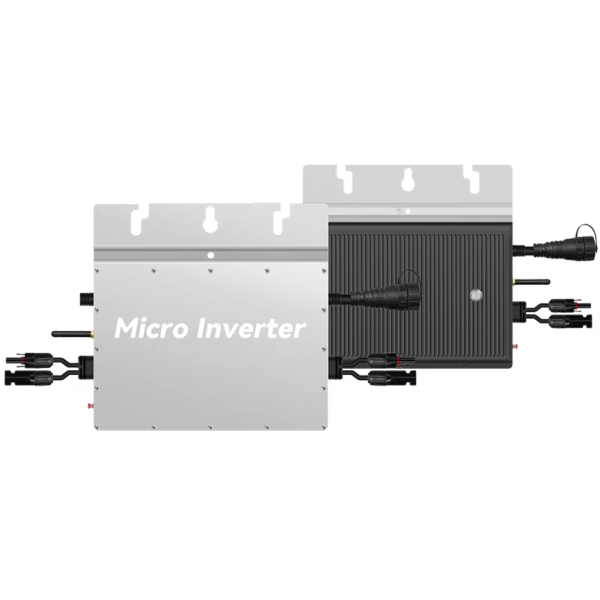

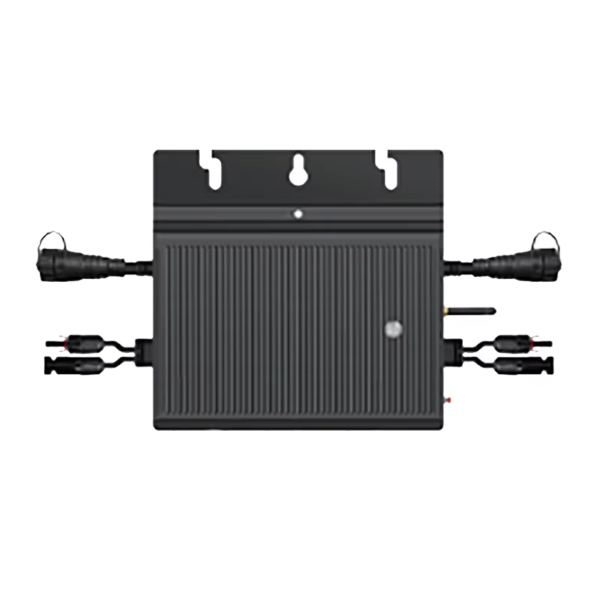

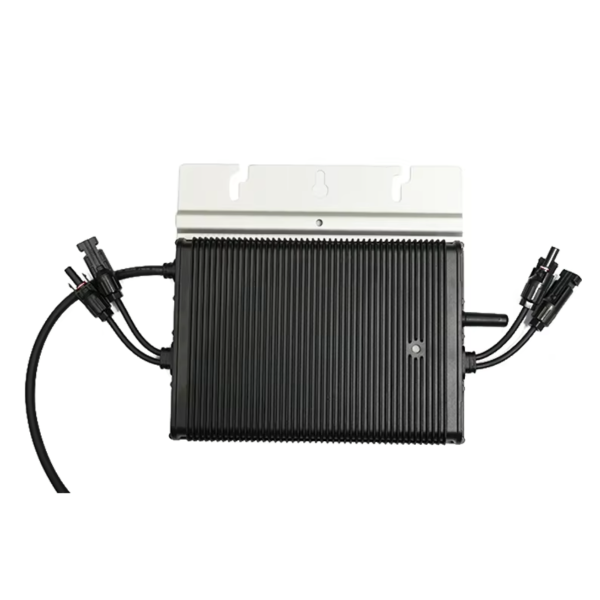

Avcon 1000w Single AC Micro Inverter Solar
Panel Kit Portable Solar Energy System for
Home Use & Balcony Microinverter
Inquiry
Overview

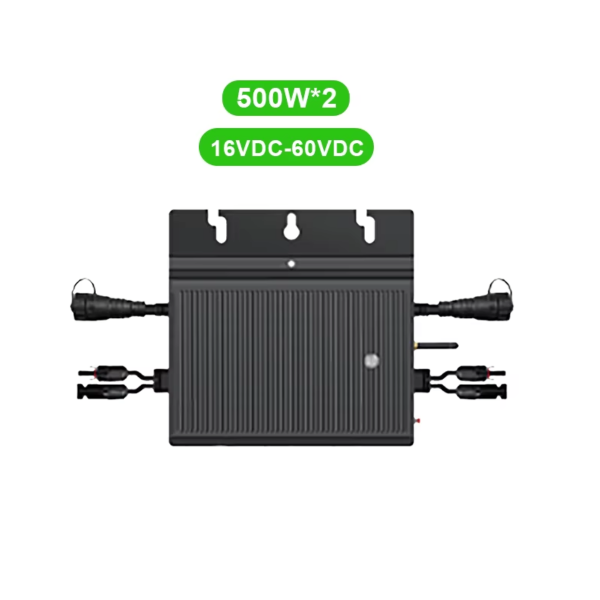

input（DC）
PV(max)
500W*2
MAX.PV open cuicuit
60Vdc
Operating voltage range
16Vdc-60Vdc
MPPT voltage range
16Vdc-60Vdc
Start up voltage
22Vdc
Maximum input current
2*12.5A
Maximum input short circuit current
2*18A
output(AC)
Maximum output power
800VA
Nominal output voltage
230Vac
Nominal output frequency
50Hz
THD
<3%
Power factor
>0.99
Efficiency
Peak conversion efficiency
96%
Night losses
<0.3w
Product Specification
Degree of protection
IP65/IP67
SPEC
230*200*54mm 1.9kg/2.75kg
